Product Details:
Payment & Shipping Terms:
|
Brand Name: | Shenzhou Anfu | Certificate: | Visa, Mastercard,CE EMV PCI RoHs |
---|---|---|---|
Operation System: | Android IOS | Touch Screen Type: | Not Touch Screen |
Model Number: | AF60S | Feature: | Bluetooth |
Hard Disk Capacity: | 8MB Flash | IC Card Reader: | Supports Contact IC Card |

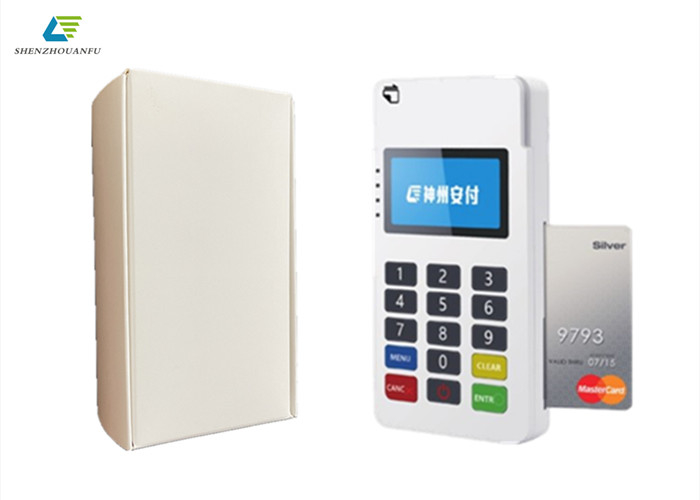

Bluetooth Android Mpos Card Reader Payment Pos Terminal
Specifications:
CPU
|
32-bit high performance security CPU
|
||
Power supply
|
DV 5V,240 mAh | ||
Interface
|
1 micro-USB interface | ||
Network
|
Blue tooth | ||
Display Screen
|
Color screen | ||
Operating System
|
Android, IOS | ||
Card reader
|
NFC,Magnetic card reader,IC card reader | ||
Paper Width
|
58mm
|
||
Effective Printing Width
|
48mm
|
||
Communication
|
Bluetooth compatible with 2.1-4.2 specification | ||
Security | Conforms to the requirements of UnionPay PIN input specification |
Product Features
1.Support the acceptance of magnetic stripe card, contact IC card and
2.non-contact C card
3.Supports NFC payments for mobile devices like Apple Pay
4.Large capacity battery, ultra-low power consumption
5.High Speed Silent Thermal Printing
6.Scanning of one-dimensional code and two-dimensional code
7.GPRS Communication, WIFI Communication,bluetooth
8.Supporting Hardware State Secret Algorithms
9.Self-contained attack detection mechanism, multiple anti-demolition and
10.self-destruction mechanism
Applications:
1. City card small consumption and recharge system
2. All-in-one card system for campuses and scenic spots
3. Member, counter consumption point management system
4. RFID electronic label application
5. Hotel, dining, entertainment
6. Tobacco industry
7. Telecommunications Industry
8. Medical insurance industry
9. Apparel, business
10. Equivalent beam antenna design on spacecraft and satellites
11. Ground-based antenna design, such as radar, VSTA, radio telescope, etc.
Competitive Advantage:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Parameters
Keyboard | > 10 numeric keys |
> 4 function keys | |
> 1 power key | |
CPU | 32-bit high performance security CPU |
Magnetic Card Reader | > Track 1/2/3, Bi-Directional |
> ISO7810,ISO7811,ISO7813 | |
IC Card Reader | > Supports contact IC card |
> Supports 1.8V, 3V, 5V card | |
> Supports memory card, CPU card | |
> Supports EMV, PBOC3.0, ISO7816 | |
Power supply | > DV 5V,500 mA |
> Micro-USB standard charging interface | |
> B uilt-in rechargeable Li-battery | |
Contactless Card Reader | > Supports ISO / IEC 14443 Type A / B, |
Mifare card,qPBOC | |
> Supports four LED lights display | |
Endurance | > Supports energy-saving mode and |
automatic shutdown function | |
> Supports magnetic card continuous | |
trading 500 times | |
> Supports IC card continuous trading | |
300 times | |
Communicataion | > Bluetooth compatible with |
2.1-4.2 specification | |
> Supports for hibernation and | |
low power transmission mode | |
Physical interface | > 1 micro-USB interface |
> 1 IC card slot | |
Buzzer | Built-in buzzer, minimum sound pressure 82db / 10cm |
Company introduction:
Beijing Shenzhou Anfu Technology Co., Ltd was established in 2015, It is a high-tech enterprise specializing in the design, development and sales of secure SoC chips and modules and security terminal products. At present, it has passed the national high-tech enterprise certification, UnionPay card acceptance terminal product enterprise certification, software enterprise certification, ISO9001: 2015 quality management system certification, and is the designated unit and sales license unit of commercial password products approved by the National Cryptographic Administration.
Our factory is located in Tianjin with 35000 Square maters,and has 15 production lines for mPOS,the daily output is 70000 sets of machines,and there are more than 700 employed workers.The company adheres to the “innovation” as the core concept of the enterprise,adhering to the enterprise spirit of “focus and professionalisam”,and take the “humanity,safety,convenience and speed” as the standard,and constantly optimizing product sturcture and development based on the merchants’ needs and experiencce.The products are sold all over the world and got the wonderful market feedback.
