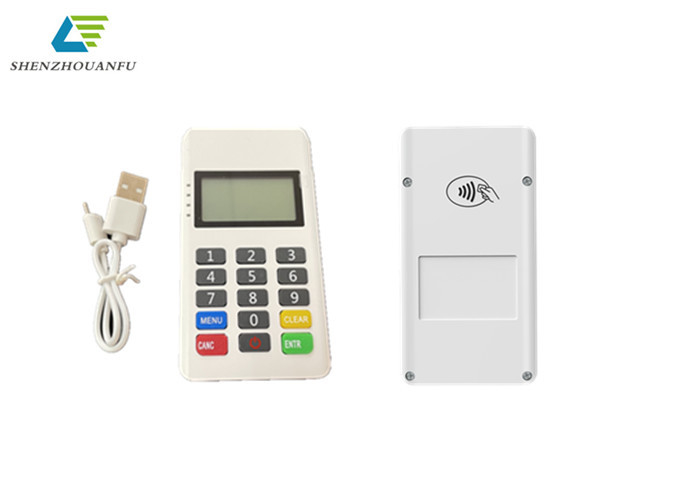

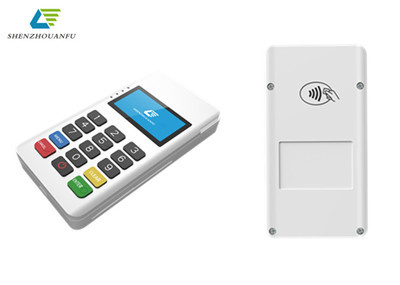

Mini pos Payment Terminal with NFC EMV PCI certificate mPOS terminal machine





Mini pos Payment Terminal NFC/EMV/PCI terminal machine mPOS





Specifications:



Processor:32-bit secure processor

Memory:64KB RAM, 512KB Flash

Keypad: 10 alphanumeric keys,5 function keys

Magnetic card reader:Track 1/2/3, Bi-Directional

Contactless card reader: Supports ISO / IEC 14443 Type A / B, Mifare card,qPBOC

Communications: Bluetooth compatible with 2.1-4.2 specification

Indicator Light:4 LED

Peripheral Ports: 1 micro-USB interface

Audio: Built-in buzzer, minimum sound pressure 82db / 10cm

Power supply: DV 5V,500 mA

Micro-USB standard charging interface

Built-in rechargeable Li-battery

Battery:3.7V/240mAh, Li-ion

Weight:100g

Environmental:Operating temperature: -5℃~50℃

Certificate:EMV,PCI





Secure Mobile Payment

A fully encrypted card reader can ensure account information and credit card security.
Certificates: EMV, PCI, Paywave, Paypass, etc





Product Features



1.Support Magnetic  and IC contact Card reader

2.Supports NFC payments for mobile devices like Apple Pay

3.Large capacity battery, ultra-low power consumption

4.High Speed Silent Thermal Printing

5.Scanning of one-dimensional code and two-dimensional code

6.GPRS Communication, WIFI Communication,bluetooth

7.Supporting Hardware State Secret Algorithms

8.Self-contained attack detection mechanism, multiple anti-demolition and

9.self-destruction mechanism

10.Nice viewing





Applications:



It is well compatible with external access to the Cash register system,

Electronic Voucher Distribution, E-Voucher, E-Payment, E-Wallet, Money Transfer,

Mobile Money, Mobile Payment, Mobile Recharge in Banks, Securities centers,

Retail Stores, Restaurants, Lotteries, Clothing stores.



Competitive Advantage:



Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.





Parameters



Keyboard	> 10 numeric keys
	> 4 function keys
	> 1 power key
CPU	32-bit high performance security CPU
Magnetic Card Reader	> Track 1/2/3, Bi-Directional
	> ISO7810,ISO7811,ISO7813
IC Card Reader	> Supports contact IC card
	> Supports 1.8V, 3V, 5V card
	> Supports memory card, CPU card
	> Supports EMV, PBOC3.0, ISO7816
Power supply	> DV 5V,500 mA
	> Micro-USB standard charging interface
	> B uilt-in rechargeable Li-battery
Contactless Card Reader	> Supports ISO / IEC 14443 Type A / B,
	Mifare card,qPBOC
	> Supports four LED lights display
Endurance	> Supports energy-saving mode and
	automatic shutdown function
	> Supports magnetic card continuous
	trading 500 times
	> Supports IC card continuous trading
	300 times
Communicataion	> Bluetooth compatible with
	2.1-4.2 specification
	> Supports for hibernation and
	low power transmission mode
Physical interface	> 1 micro-USB interface
	> 1 IC card slot
Buzzer	Built-in buzzer, minimum sound pressure 82db / 10cm





Company introduction:





Beijing Shenzhou Anfu Technology Co., Ltd was established in 2015, It is a high-tech enterprise specializing in the design, development and sales of secure SoC chips and modules and security terminal products. At present, it has passed the national high-tech enterprise certification, UnionPay card acceptance terminal product enterprise certification, software enterprise certification, ISO9001: 2015 quality management system certification, and is the designated unit and sales license unit of commercial password products approved by the National Cryptographic Administration.



Our factory is located in Tianjin with 35000 Square maters,and has 15 production lines for mPOS,the daily output is 70000 sets of machines,and there are more than 700 employed workers.The company adheres to the “innovation” as the core concept of the enterprise,adhering to the enterprise spirit of “focus and professionalisam”,and take the “humanity,safety,convenience and speed” as the standard,and constantly optimizing product sturcture and development based on the merchants’ needs and experiencce.The products are sold all over the world and got the wonderful market feedback.
