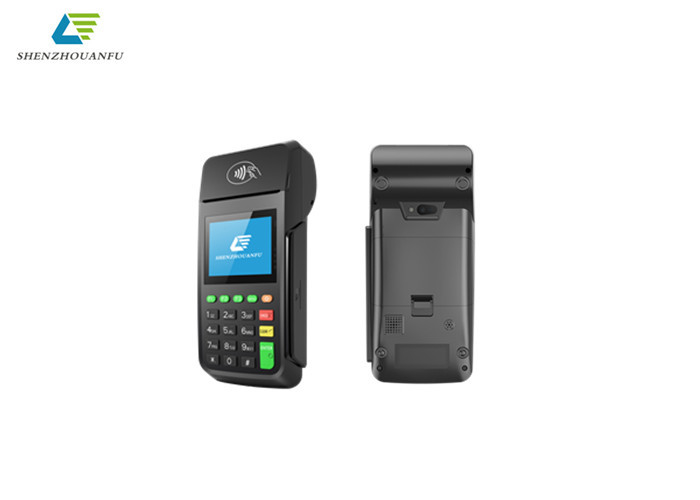

GPRS wireless financial POS terminal point of sale system with printer





GPRS wireless financial POS terminal point of sale system with printer



Specifications:





１.Wifi+Blue tooth : 802.11 b/g/n; BT 4.1 LE (optional)



２.LCD screen: 2.4 inch TFT pixels: 320*240, with backlight, support handwriting



３.Keypad:20 buttons (10 numbers, 10 function buttons)



４.Printer:Built-in high-speed thermal printer, printing speed above 16 lines per second Paper width: 58MM, paper roll outer diameter: 40MM



５.Barcode scanning:Support one-dimensional bar code, two-dimensional code



６.Security:Support MKSK, DUKPT key management;



７.Power Adapter:AC input: 100-240V, 50/60 Hz;



８.Battery:3.6V 2600mAh lithium polymer battery





Product Features



1. Elegant design, convenient swiping, MSR/IC.RFID card support.

2. Excellent 32-bit secure CPU, outstanding performance in mass transactions.

3. Authoritative certifications: CCC, CE, RoHS, PCI PED, EMV4.2 Level 1 & 2, PBOC2.0, PAYWAVE,PAYPASS.

4.Integrated wireless communication module: GPRS, CDMA, WIFI, BlueTooth.

5.Powerful Li-ion battery support, 2600mAh, 7.4V, more than 40 hours standby time, supports 400 transactions.

6.High speed thermal printer: up to 28 lines/sec (84mm/sec). Easy-load style.







Applications:



Checkout: Credit Debit / VISA Master Union Pay / NFC card payment
Money Transfer: E-Wallet E-Purse / Instant Mobile Remittance
Bill Payment: Electricity / Fuel / Bus Fare Validation
Prepaid Recharge: Mobile Topup / Gift card / Game card
Vending n Printing: Voucher / Airtime / Lottery / Ticketing / Transportation



Competitive Advantage:



Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.





Parameters



CPU	32-bit secure CPU
Display	2.4-inch TFT touch Screen,Supporting electronic signature
Magnetic Card Reader	Track 1/2/3, two-way card swipe
IC card reader	Compliance with EMV2000 and PBOC 3.0 specifications
Contactless Card Reader	Complicance with EMV Specification
Scanner	One-Dimensional code
	Two-Dimensinal code
Printer	Thermal Printer, Paper Width: 58mm Outer Diameter: 40mm
Card slots	2 SIM cards, 1 SAM card
Battery	3.7v Lithium battery,2600mAh
	can not be exposed in the sun.
Voltage	> Input: 100-250V AC,50Hz/60Hz 0.2A
Certification	EMV L1&L2 PBOC 3.0 L1&L2 QPBOC /QYUCS authentication PAYPASS/paywave Authentication PCI PTS Authentication



Company introduction:





Beijing Shenzhou Anfu Technology Co., Ltd was established in 2015, It is a high-tech enterprise specializing in the design, development and sales of secure SoC chips and modules and security terminal products. At present, it has passed the national high-tech enterprise certification, UnionPay card acceptance terminal product enterprise certification, software enterprise certification, ISO9001: 2015 quality management system certification, and is the designated unit and sales license unit of commercial password products approved by the National Cryptographic Administration.



Our factory is located in Tianjin with 35000 Square maters,and has 15 production lines for mPOS,the daily output is 70000 sets of machines,and there are more than 700 employed workers.The company adheres to the “innovation” as the core concept of the enterprise,adhering to the enterprise spirit of “focus and professionalisam”,and take the “humanity,safety,convenience and speed” as the standard,and constantly optimizing product sturcture and development based on the merchants’ needs and experiencce.The products are sold all over the world and got the wonderful market feedback.
